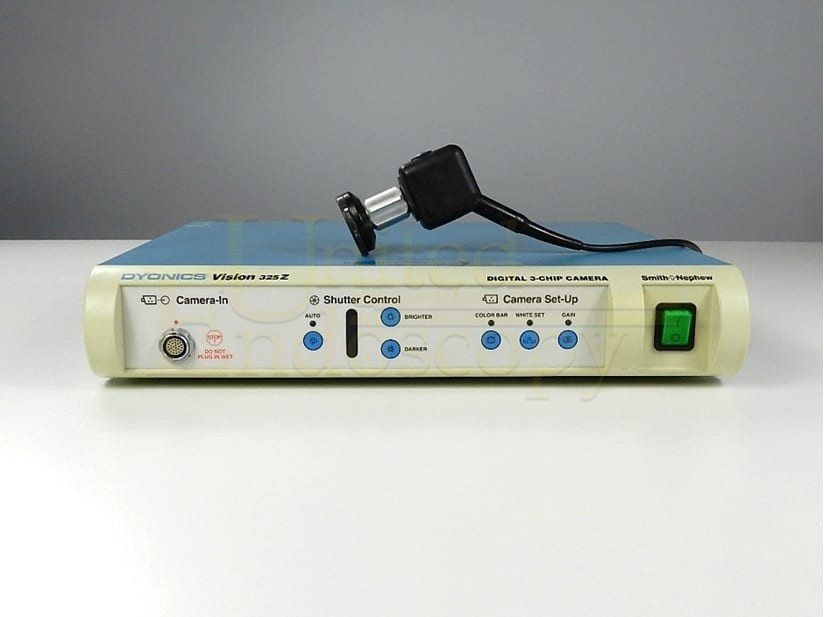

Dyonics 325Z Digital 3-Chip Camera System

$900.00 (USD)
Click here to request more information for this product

by Dyonics

Dyonics 325Z Digital 3-Chip Camera System

Resolution : Horizontal: >800 TV lines (RGB or R-Y/B-Y/Y) Vertical: 450 lines
Signal-to-Noise : Greater than 60 db
Shutter : NTSC: 1/60 per second through 1/10,000 per second shutter speed
PAL : 1/50 per second through 1/10,000 per second shutter speed
NTSC/PAL Video Outputs : Two video outputs 1 volt P-P, NTSC or PAL into 75 ohms,BNC coaxial connectors
RGB Video Output : One video output 1 volt P-P, R-G-B and Sync into 75 ohms, BNC coaxial connectors (switchable to R-Y/B-Y/Y)
Y/C Video Output : Two Y/C video outputs, combined luminance/chroma signal into 4 pin
mini-Din plug
Component Video Output : One video output 0.7 volt P-P, R-Y, B-Y and 1 volt P-P for Y into 75 ohms, BNC coaxial connectors (switchable to RGB)
Standard Illumination : Minimum illumination 1.25 lux at f1.4
Power Requirements : 100-120/220-230 VAC
